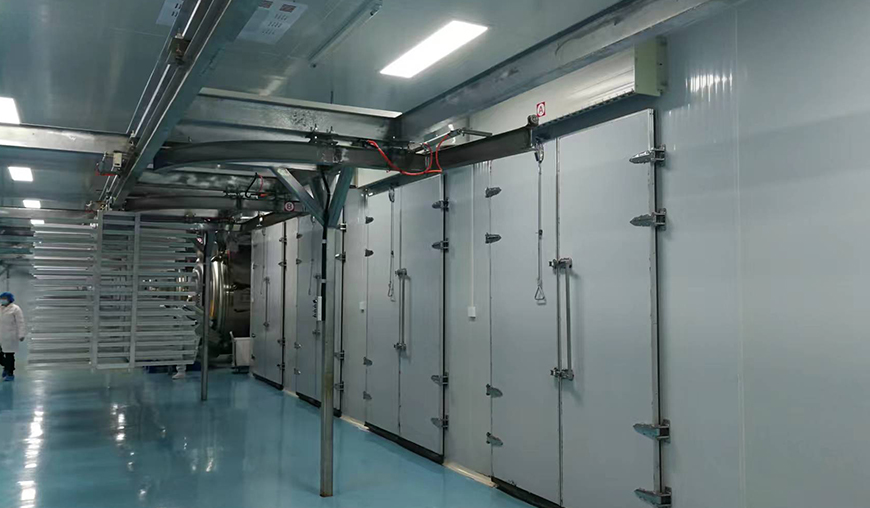

1. Overview of Large 1200kg Industrial Freeze Dryers

A large freeze dryer with 1200kg capacity is an Industrial vacuum freeze drying system

capable of handling approximately 1200 kilograms of raw or pre‑frozen product per batch. These systems

are widely used in:

• Industrial food processing
• Commercial-scale fruit and vegetable drying
• Meat and seafood preservation
• Instant meals and ready-to-eat components
• Pet food and pet treats production
• Functional foods, nutraceutical ingredients and dietary supplements

In the food industry, freeze drying (also called lyophilization) is regarded as one of the

most advanced drying technologies because it preserves flavor, aroma, color, shape, nutrients and

rehydration characteristics far better than conventional drying methods such as hot air drying or

spray drying. A 1200kg freeze dryer is targeted at medium to large factories that require consistent,

repeatable quality at high throughput.

2. What Is a 1200kg Capacity Industrial Freeze Dryer?

A 1200kg capacity industrial freeze dryer is a large-scale vacuum freeze drying

chamber and auxiliary system engineered to remove water from food products by sublimation at low

temperature and low pressure. The “1200kg” specification usually refers to one of the following:

• Approximate maximum loading capacity of wet raw material per batch, or
• Approximate fresh product input capacity per cycle before freeze drying.

In practice, the actual loading capacity depends on:

• Product type (fruits, vegetables, meats, dairy, coffee, etc.)
• Initial moisture content
• Slice thickness and product geometry
• Tray area and stacking configuration
• Required final moisture content

Industrial 1200kg freeze dryers are typically integrated systems consisting of a large vacuum chamber,

refrigerating plant, heating and cooling circulation system, vacuum pumps, control system and

sanitary product handling equipment. They are designed for continuous industrial operation, high

reliability, and compliance with food safety regulations.

3. Working Principle of a Large Industrial Freeze Dryer

The core principle of a large freeze dryer with 1200kg capacity is the transformation of water

directly from solid ice to vapor without passing through the liquid phase. This process is known as

sublimation. In a vacuum environment and at low temperature, ice in the frozen food

evaporates directly into water vapor and is captured on a cold condenser surface.

3.1 Major Stages of the Freeze Drying Process

1. Product Pre‑Freezing


   The food product is first frozen, either inside the freeze dryer or in a separate industrial

   freezer. The goal is to convert almost all water in the product into ice and stabilize cellular

   structures before vacuum drying.

2. Primary Drying (Sublimation Drying)


   After pre‑freezing, the chamber is evacuated to a deep vacuum. Shelf temperature is carefully

   controlled and gradually raised to promote sublimation. Ice molecules change directly from solid

   to vapor, leaving a porous dry structure in the product.

3. Secondary Drying (Desorption Drying)


   When most ice has sublimated, bound water remains attached to the product matrix. Shelf

   temperature is further increased at low pressure to remove this residual moisture, achieving

   very low final water content (often below 2–5%, depending on application).

4. Backfill and Unloading


   At the end of the cycle, the chamber is backfilled with sterile or filtered air or inert gas

   (such as nitrogen) to atmospheric pressure. Trays or trolleys are then unloaded for packaging.

3.2 Key Equipment Components

The main components of a 1200kg industrial freeze dryer include:

• Vacuum Chamber – A large, pressure‑resistant, insulated vessel housing the shelves and product trays.
• Product Shelves / Plates – Heat transfer plates with internal channels for circulating heating and cooling fluid.
• Refrigeration System – Provides low‑temperature cooling for both the shelves (during freezing) and condenser.
• Condenser (Cold Trap) – A low‑temperature surface that captures water vapor as ice, preventing it from reaching the vacuum pumps.
• Vacuum Pump System – Often a combination of rotary vane pumps, roots blowers or screw pumps to quickly reach and maintain low pressure.
• Heating Medium Circulation Unit – Circulates thermal fluid (e.g. glycol–water, silicone oil) through shelves to control temperature.
• Control and Automation System – PLC or industrial computer controlling temperature ramps, pressure, timing, safety interlocks and data logging.
• Clean-in-Place (CIP) and Sterilization-in-Place (SIP) Options – For hygienic cleaning and sterilization, depending on food safety requirements.

4. Key Advantages of Large 1200kg Freeze Dryers for Food Processing

When implemented correctly, a large industrial freeze dryer with 1200kg capacity delivers multiple

technical and economic advantages for food manufacturers.

4.1 Superior Product Quality

• Excellent nutrient retention – Minimal thermal degradation of vitamins, antioxidants and sensitive bioactives.
• Preserved flavor and aroma – Low-temperature drying prevents loss of volatile compounds.
• Minimal shrinkage and structural damage – Product maintains original shape, size and texture.
• Outstanding rehydration – Highly porous dried structure absorbs water quickly, restoring near‑fresh properties.

4.2 Long Shelf Life and Food Safety

• Very low final moisture content – Inhibits microbial growth and enzymatic reactions.
• Reduced need for chemical preservatives – Shelf stability from low water activity instead of additives.
• Suitable for temperature‑sensitive products – Safe for probiotics, enzymes, functional ingredients.
• Stable at ambient temperature – Often no refrigeration required during distribution.

4.3 Operational and Economic Benefits

• Large batch capacity – 1200kg capacity supports industrial scale and economies of scale.
• High value products – Freeze dried foods typically command a premium price in the market.
• Flexible production – Same system can handle many product types with different recipes.
• Reduced transportation cost – Lightweight products with low moisture content and long shelf life.

4.4 Process Control and Repeatability

• Precise temperature and pressure profiles – Programmable recipes ensure consistent batch quality.
• Data logging and traceability – Critical for quality assurance and regulatory documentation.
• Automation and remote monitoring – Reduces manual intervention and operator error.

5. Typical Applications in Industrial Food Processing

A large 1200kg capacity industrial freeze dryer is highly versatile and supports a wide range of

food categories. The following sections highlight common product groups and their processing

characteristics.

5.1 Freeze Dried Fruits

• Strawberries, blueberries, raspberries, blackberries
• Apples, pears, peaches, apricots, mangoes, pineapple
• Bananas, kiwi, dragon fruit, citrus slices

Freeze dried fruits are popular as snacks, breakfast cereal components, bakery ingredients and

smoothie inclusions. A 1200kg freeze dryer can handle sliced, diced, whole or pureed fruits spread

on trays. Moisture content is generally reduced from 80–90% to 2–5%, achieving long shelf life and

crunchy texture.

5.2 Freeze Dried Vegetables and Herbs

• Carrots, peas, corn, green beans, potatoes
• Onions, garlic, leeks, bell peppers, tomatoes
• Leafy vegetables and culinary herbs (parsley, basil, cilantro, dill, chives)

Industrial freeze drying preserves color, flavor and nutritional value for vegetables used in

instant soups, ready meals and seasoning mixes. A large 1200kg freeze dryer can process mixed

vegetable blends or single-ingredient batches with programmable recipes.

5.3 Freeze Dried Meat, Poultry and Seafood

• Cooked chicken pieces and strips
• Beef, pork and lamb cubes or slices
• Fish fillets, shrimp, shellfish, seafood powders

High-protein foods benefit greatly from freeze drying when used in field rations, military meals,

expedition foods and premium pet foods. A 1200kg industrial freeze dryer offers large capacity for

marinated, cooked or raw products, often requiring strict hygiene control and possibly CIP/SIP

systems.

5.4 Dairy Products and Coffee

• Milk, yogurt and cheese powders
• Infant formula ingredients
• Instant coffee granules and coffee extracts

Freeze dried dairy and coffee products are known for their superior solubility and flavor retention.

A 1200kg freeze dryer can be configured to process liquid products pre‑frozen in trays or on

special carriers, forming porous cakes that are later milled or granulated.

5.5 Ready Meals and Snack Components

• Instant noodles toppings
• Ready-to-eat meal components
• Expedition and space foods
• High‑energy snacks and bars

Large industrial freeze dryers support complex recipes where sauces, vegetables and proteins are

combined into ready meal components, then freeze dried as a batch. The 1200kg capacity enables

significant throughput for commercial markets.

5.6 Pet Food and Pet Treats

Freeze dried pet foods and treats, especially for dogs and cats, are a rapidly expanding market.

Producers use large 1200kg freeze dryers to manufacture:

• Raw meat-based freeze dried pet diets
• Liver, heart, and organ meat treats
• Fish and seafood-based snacks

These products require precise control of microbiological risks and often rely on frozen raw

material loaded directly into industrial freeze dryers.

6. Typical Technical Specifications of a 1200kg Industrial Freeze Dryer

Technical details differ from manufacturer to manufacturer, but most large 1200kg capacity

industrial freeze dryers share several common characteristics. The following specification table

shows typical ranges for an industrial system configured for food processing.

7. Design Features of Large Industrial Freeze Dryers

To handle large batch sizes and maintain consistent product quality, a 1200kg capacity freeze

dryer incorporates multiple engineering features specifically tailored to industrial food

processing.

7.1 Chamber and Structural Design

• Horizontal cylindrical or rectangular chamber with reinforcement ribs and vacuum-rated doors.
• High efficiency thermal insulation to minimize heat losses and maintain stable internal temperatures.
• Hygienic welds and smooth surfaces to reduce contamination risk and simplify cleaning.
• Integrated rails or trolleys for easy loading and unloading of heavy tray carts.

7.2 Shelf and Tray Configuration

• Multiple shelves in vertical stack, each connected to the heating/cooling circuit.
• Uniform temperature distribution across all shelves to avoid uneven drying.
• Stainless steel trays or customized product carriers with perforations when needed.
• Adjustable shelf spacing on some designs to accommodate different product heights.

7.3 Refrigeration and Heat Transfer System

• Multi-stage refrigeration to achieve low condenser and shelf temperatures.
• Closed-loop thermal fluid circulation for controlled heating and cooling of shelves.
• Energy optimization features such as variable speed drives and heat recovery where applicable.

7.4 Vacuum System

• Combination of roughing pumps and high-vacuum boosters to quickly evacuate the chamber.
• Vacuum valves and piping designed for low leakage and minimal dead volumes.
• Vacuum measurement instruments (Pirani, capacitance manometers) for precise control.

7.5 Condenser Configuration

• Internal or external condenser design depending on installation layout.
• Large condensing surface area to capture water vapor from a 1200kg load.
• Automatic defrost cycle between batches to remove accumulated ice.

7.6 Control and Automation

• PLC-based control system with touch-screen HMI.
• Recipe management for different product types, including temperature and pressure ramps.
• Alarm and diagnostic functions with event history.
• Remote monitoring and control via Ethernet or industrial networks.

7.7 Hygiene, Cleaning and Sanitation

• CIP nozzles and spray balls strategically placed inside the chamber.
• Drainage design to prevent standing water and residues.
• Material selection compliant with food contact standards.

8. Key Process Parameters in Large Scale Freeze Drying

Optimizing a 1200kg industrial freeze drying process requires careful control of several critical

parameters. The balance between drying speed, product quality and energy consumption must be

considered.

8.1 Product Freezing Parameters

• Freezing rate – Affects ice crystal size and porous structure formation.
• Freezing temperature – Frequently between -20°C and -50°C, depending on product.
• Hold time – Ensures complete solidification before vacuum is applied.

8.2 Primary Drying Parameters

• Chamber pressure – Typically 30–200 Pa; must be controlled below the product eutectic or collapse pressure.
• Shelf temperature – Increased gradually to promote sublimation while maintaining product temperature safety margins.
• Heat transfer coefficient – Influenced by tray design, contact area and product thickness.

8.3 Secondary Drying Parameters

• Higher shelf temperature – Often up to 40–60°C for food products.
• Longer hold time – To remove bound water and achieve low residual moisture.
• End-point detection – Based on product temperature plateau, pressure changes, or moisture measurements.

8.4 Monitoring and Control Strategies

• Thermocouples or RTDs in product and shelves.
• Vacuum sensors to follow pressure evolution.
• Comparative pressure methods to detect the end of primary drying.
• Data logging and batch reports for process optimization.

9. Energy Consumption and Efficiency Considerations

Freeze drying is an energy-intensive process, especially at industrial scale with 1200kg capacity.

Understanding energy consumption patterns is crucial for cost control and sustainability.

9.1 Main Energy Consumers

• Refrigeration compressors – Required for both pre‑freezing and condensation of water vapor.
• Vacuum pumps – Maintain deep vacuum continuously during drying.
• Heating system – Supplies heat to drive sublimation and desorption.
• Auxiliary equipment – Control system, CIP, fans, and other utilities.

9.2 Strategies to Improve Energy Efficiency

• Optimized cycle design – Avoid over-drying; end cycle exactly when target moisture is reached.
• Heat integration – Recover waste heat from compressors where feasible.
• Variable frequency drives – Adjust refrigeration and vacuum capacity to actual load.
• Good insulation – Minimizes thermal losses from chamber walls and piping.
• Maintenance of vacuum integrity – Prevents leaks that increase pump load.

9.3 Batch Size vs. Energy Cost

Running a 1200kg freeze dryer underloaded significantly increases specific energy consumption per

kilogram of dried product. Industrial users should:

• Plan production so batches are loaded close to the nominal capacity when possible.
• Group similar products with compatible freeze drying recipes in the same batch.
• Monitor energy use per batch and per kilogram to identify optimization opportunities.

10. Installation, Layout and Utility Requirements

A large freeze dryer with 1200kg capacity requires careful planning for installation and integration

into an existing or new food processing line.

10.1 Space and Layout

• Chamber footprint and height – The system can be several meters long and tall.
• Service access – Sufficient space for maintenance, condenser defrost, and pump access.
• Product flow – Logical flow from raw material preparation to freezing, freeze drying, packaging and storage.
• Clean and non-clean zones – Separation to maintain hygiene standards.

10.2 Utility Connections

• Electrical power supply – High capacity, often three-phase with dedicated transformers or switchboards.
• Cooling water or chiller connections – Required for condenser and compressor cooling.
• Compressed air – For valve actuation and some control functions.
• Steam or hot water (if used) – For heating medium, CIP or SIP systems.
• Drainage – For condensate, CIP effluent and defrost water.

10.3 Environmental and Safety Considerations

• Noise control – Vacuum pumps and compressors may require acoustic insulation.
• Ventilation – Adequate airflow to dissipate heat generated by equipment.
• Safety devices – Emergency stops, door interlocks, overpressure protection, and electrical safety.

11. Comparison of Freeze Drying with Other Drying Methods

For industrial food processors evaluating investment in a 1200kg freeze dryer, it is useful to

compare freeze drying with alternative drying methods.

From this comparison, freeze drying stands out for high product quality at the cost of higher

investment and energy use. Large 1200kg freeze dryers are therefore most suitable for products

where premium quality or long shelf life justifies the process cost.

12. How to Select a 1200kg Industrial Freeze Dryer for Food Applications

Selecting the right large freeze dryer requires technical and economic evaluation. The following

points provide a structured decision framework.

12.1 Define Product Portfolio and Capacity Needs

• Types of foods to be freeze dried (fruits, meats, vegetables, dairy, pet food, etc.).
• Desired batch size and number of batches per day or per week.
• Target annual production volume of freeze dried product.
• Planned expansion or scaling in future years.

12.2 Establish Quality and Safety Requirements

• Target moisture content and water activity levels.
• Microbiological safety requirements and standards.
• Certifications and regulatory requirements for target markets.
• Requirements for CIP, SIP and hygienic design.

12.3 Evaluate Technical Specifications

• Shelf area and configuration suitable for product shapes and tray sizes.
• Cooling and heating capacity relative to product moisture and thermal properties.
• Vacuum system performance, including pump types and redundancies.
• Automation, control system features and data logging capabilities.

12.4 Consider Operational and Maintenance Factors

• Operator skill requirements and training.
• Ease of cleaning and defrosting between batches.
• Accessibility of critical components for maintenance.
• Availability of spare parts, service and technical support in your region.

12.5 Analyze Total Cost of Ownership

• Initial capital investment for the 1200kg freeze dryer and auxiliaries.
• Installation and commissioning costs, including building modifications.
• Energy consumption and utility costs per kilogram of dried product.
• Maintenance and spare parts budget over lifetime.

13. Basic Operation Workflow for a 1200kg Industrial Freeze Dryer

The general operation sequence for a large Industrial food freeze dryer follows a standardized

workflow. Operators adapt this workflow to specific products and recipes.

1. Preparation of Raw Material


   Washing, peeling, cutting, blanching, cooking or seasoning as required. Product is typically

   portioned or sliced into uniform sizes for even drying.

2. Loading onto Trays


   Food is evenly distributed on trays to form a uniform layer. Tray height and product thickness

   are controlled to optimize mass and heat transfer.

3. Pre‑Freezing


   Trays are pre‑frozen in a separate freezing tunnel or inside the freeze dryer if the design

   supports in‑chamber freezing.

4. Chamber Loading


   Trays are stacked on trolleys or shelf supports. The chamber door is closed and securely locked.

5. Vacuum and Drying Cycle


   The freeze drying recipe is initiated: vacuum is drawn, shelf temperature is ramped according

   to set profiles, and the control system maintains parameters within defined limits.

6. Monitoring and Adjustments


   Operators monitor critical parameters (temperature, pressure, time). Adjustments are made if

   necessary within defined safety margins.

7. End of Cycle and Backfill


   When the cycle is complete, the chamber is backfilled with filtered air or inert gas to

   atmospheric pressure.

8. Unloading and Post‑Processing


   Dried products are unloaded, inspected and transferred to packaging lines. Products may be

   sized, milled or blended before final packaging.

14. Quality Control and Testing for Freeze Dried Foods

Industrial food processors using a 1200kg freeze dryer must implement a robust quality control

system to ensure product safety and consistency.

14.1 Physical and Chemical Tests

• Moisture content – Using oven drying, Karl Fischer titration or rapid analyzers.
• Water activity (a_w) – Key indicator of microbial stability.
• Color measurement – To confirm preservation of natural appearance.
• Texture analysis – For crunchiness, brittleness or rehydrated texture.

14.2 Microbiological Tests

• Total plate count
• Yeasts and molds
• Pathogens specific to product category (e.g. Salmonella, Listeria)

14.3 Sensory Evaluation

• Flavor, aroma and mouthfeel compared to fresh or benchmark samples.
• Rehydration performance for instant foods and ready meals.

14.4 Process Validation and Documentation

• Calibration of temperature and pressure sensors.
• Cycle validation for new products, including worst-case loading conditions.
• Batch records, parameter trend charts and deviations documentation.

15. Maintenance and Reliability of Large 1200kg Freeze Dryers

Due to the complexity and size of a 1200kg industrial freeze dryer, preventive maintenance and

reliability engineering are essential.

15.1 Routine Maintenance Tasks

• Checking vacuum pump oil levels and changing oil as recommended.
• Inspecting compressor performance and refrigerant levels.
• Cleaning condenser surfaces and defrosting ice residues.
• Inspecting door gaskets and vacuum seals for wear and leakage.
• Verifying function of valves, sensors and safety interlocks.

15.2 Preventive Maintenance Scheduling

• Weekly, monthly and annual maintenance schedules based on operating hours.
• Planned downtime for internal chamber inspection and cleaning.
• Replacement of critical components before end of life to avoid unexpected failures.

15.3 Reliability and Uptime

• Design redundancy in vacuum system or refrigeration system where critical.
• Monitoring key performance indicators such as vacuum pull-down time and condenser temperature stability.
• Implementing remote diagnostics to detect early signs of equipment issues.

16. Safety Considerations for Industrial Freeze Drying Operations

Operating a large 1200kg freeze dryer involves handling vacuum, low temperature and high power

systems. Safety measures must be strictly followed.

16.1 Operator Safety

• Training operators on correct loading, start-up and shutdown procedures.
• Lock-out / tag-out procedures during maintenance.
• Personal protective equipment (PPE) for handling frozen products and cleaning chemicals.

16.2 Equipment Safety

• Door interlocks that prevent opening under vacuum or during cycle.
• Overpressure and underpressure safety valves and switches.
• Temperature and pressure limits enforced by the control system.

16.3 Environmental and Regulatory Compliance

• Proper disposal of used oils, refrigerants and cleaning agents.
• Compliance with local regulations on industrial refrigeration systems.
• Noise and vibration limits for industrial plants.

17. Emerging Trends in Large Scale Freeze Drying Technology

Industrial freeze drying technology continues to evolve as food manufacturers seek higher

efficiency, better quality and lower environmental impact.

17.1 Advanced Control and Automation

• Model-based control of shelf temperature and chamber pressure.
• Automated determination of end-point using advanced sensors and algorithms.
• Integration with factory MES and ERP systems for production planning.

17.2 Energy Optimization and Sustainability

• Use of more efficient compressors and vacuum pumps.
• Heat recovery systems to reuse condensation and compressor heat.
• Improved insulation materials to reduce thermal losses.

17.3 Continuous and Semi‑Continuous Freeze Drying

While most 1200kg systems are batch type, research and development in continuous or semi‑continuous

freeze drying may influence future large‑scale installations, particularly for high-volume standard

products.

18. Frequently Asked Questions about 1200kg Industrial Freeze Dryers

18.1 How long does a typical freeze drying cycle take for a 1200kg load?

Cycle time varies widely depending on product type, thickness, initial moisture and final moisture

targets. For many food products, cycle time ranges from 8 to 40 hours. Denser, high‑moisture

products with thick layers may require longer cycles.

18.2 What is the difference between chamber capacity and shelf area?

Chamber capacity (e.g. 1200kg) typically describes the maximum batch mass that can be loaded.

Shelf area describes the total surface available for trays, which influences loading density and

drying uniformity. Both must be considered when evaluating capacity.

18.3 Can one 1200kg freeze dryer handle both fruits and meats?

Technically yes, but hygiene and cross‑contamination control are critical. Producers usually

segregate high‑risk raw materials, use strict cleaning and sanitation procedures between batches,

and may dedicate specific equipment or schedules to different product categories.

18.4 What final moisture content can be achieved?

Freeze drying can typically achieve moisture contents below 2–5% (by weight), depending on

product and process conditions. For most shelf-stable foods, water activity rather than moisture

content is the key criterion.

18.5 Is freeze drying suitable for organic and clean label products?

Yes. Freeze drying supports clean label trends because it provides long shelf life and premium

sensory quality without relying heavily on artificial preservatives or additives. This is a major

advantage for organic and natural product lines.

19. Summary

A large freeze dryer with 1200kg capacity for industrial food processing is a

complex, high‑value system designed to deliver exceptional product quality, long shelf life and

process flexibility at industrial scales. By carefully controlling freezing, vacuum, temperature

and time, water is removed from food products via sublimation, preserving structure, flavor,

nutrients and rehydration properties.

When planning an investment in a 1200kg industrial freeze dryer, food producers should analyze

product portfolio, capacity requirements, quality and safety targets, energy consumption, total

cost of ownership, and integration with existing production lines. With proper design, operation

and maintenance, large industrial freeze dryers provide a strategic advantage in high-value

food markets and open opportunities for innovative, premium Freeze dried products.
