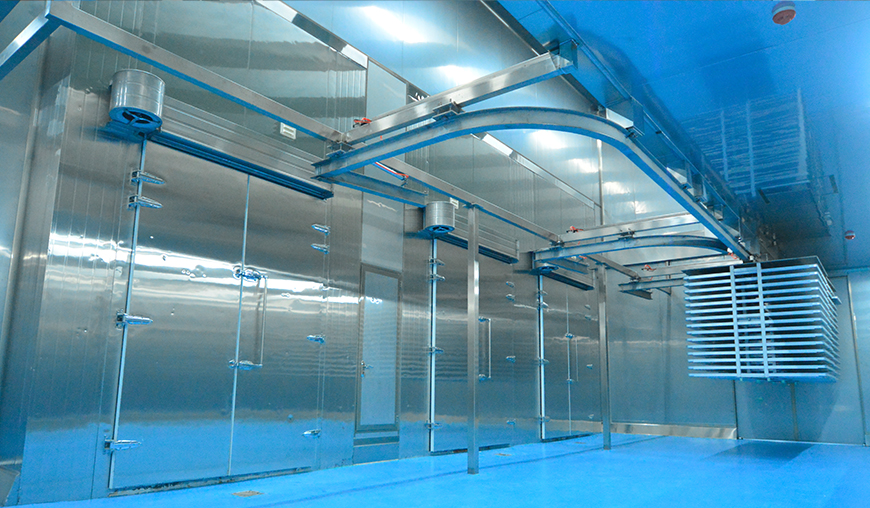

LG200 Vacuum Freeze-Drying Equipment: Specifications and Applications

The LG200 vacuum freeze-drying equipment is a widely used model in the freeze‑drying industry,

suitable for laboratories, pilot‑scale plants, and small‑batch industrial production.

This guide provides a comprehensive, SEO‑friendly overview of the LG200 freeze dryer,

including working principle, technical specifications, typical configurations, operating parameters,

and application fields.

1. What Is LG200 Vacuum Freeze-Drying Equipment?

LG200 vacuum freeze-drying equipment, often referred to as an LG200 freeze dryer or LG200 lyophilizer,

is a vacuum system designed to remove moisture from temperature‑sensitive products by sublimation.

The designation “LG200” most commonly indicates an approximate 200 kg per batch

water removal or fresh material handling capacity, depending on configuration and industry practice.

As a medium‑capacity freeze dryer, an LG200 vacuum freeze-drying machine is typically used

to bridge the gap between laboratory research and full‑scale industrial production.

It enables process development, pilot validation, and small commercial batches with

reproducible conditions and stable product quality.

2. Working Principle of LG200 Freeze Dryer

The LG200 vacuum freeze-drying equipment operates based on the principle of

water sublimation under low temperature and low pressure.

The process is generally divided into three stages:

Freezing Stage
The product is cooled to a temperature below its eutectic point or glass transition temperature
to ensure that the water in the material solidifies. In an LG200 freeze dryer,
this is usually achieved by shelf cooling with circulating refrigerant.

Primary Drying (Sublimation) Stage
Under high vacuum, heat is gently supplied to the frozen product.
Ice in the material directly converts from solid to vapor (sublimation)
and is captured by the low‑temperature condenser (cold trap).
This stage removes the majority of water content.

Secondary Drying (Desorption) Stage
Residual bound water is removed at slightly higher shelf temperatures
while maintaining controlled vacuum. This step decreases the final moisture content
to very low levels, improving product stability and shelf life.

Throughout the entire cycle, the LG200 vacuum freeze-drying equipment precisely controls

shelf temperature, chamber pressure, and condenser temperature to maintain stable lyophilization conditions.

3. Key Features and Advantages of LG200 Vacuum Freeze-Drying Equipment

An LG200 vacuum freeze-drying machine offers several advantages for pharmaceutical, food,

biological, and chemical industries. Below are the main features:

Medium capacity suitable for pilot and small‑scale production

Reliable vacuum system for stable and repeatable drying cycles

Uniform shelf temperature for consistent product quality

Low operating temperature to protect heat‑sensitive materials

High product porosity and reconstitution speed for pharmaceuticals

Extended shelf life of freeze‑dried products with minimal quality loss

Flexible control system with programmable recipes and data recording

Scalable process parameters for technology transfer to larger models

3.1 Technical Advantages

LG200 vacuum freeze-drying equipment is designed to provide accurate control over critical parameters:

Precision shelf temperature control (cooling and heating)

Deep vacuum level enabling efficient sublimation

High‑capacity condenser to capture water vapor and protect the vacuum pump

Robust chamber design for repeated vacuum and temperature cycling

Optional clean‑in‑place (CIP) and steam‑in‑place (SIP) for hygienic applications

3.2 Operational Advantages

From an operational perspective, the LG200 freeze dryer offers:

Reduced product loss compared with conventional drying methods

Better retention of color, flavor, aroma, and active components

Possibility of continuous or semi‑continuous operation depending on layout

Traceable production records for regulatory compliance in GMP environments

4. Typical Applications of LG200 Vacuum Freeze-Drying Equipment

The LG200 vacuum freeze-drying equipment can be applied in a wide range of sectors

that require gentle drying of sensitive products.

4.1 Pharmaceutical and Biotechnology Applications

Lyophilization of injectables (vials, ampoules)

Freeze‑drying of vaccines, peptides, proteins, and enzymes

Preservation of biological cultures and diagnostic reagents

Stabilization of probiotics and microbial preparations

Drying of pharmaceutical intermediates and APIs

4.2 Food and Nutraceutical Applications

Freeze‑dried fruits, vegetables, herbs, and spices

Instant coffee, tea, and beverage powders

Functional foods and nutritional supplements

Pet food and animal nutrition ingredients

Heat‑sensitive plant extracts and natural pigments

4.3 Chemical, Material, and Other Applications

Drying of heat‑sensitive chemicals and catalysts

Preparation of porous materials and aerogels

Drying of nanomaterials and advanced functional powders

Sample preservation for analytical laboratories

High‑value cosmetic ingredients and formulations

5. General Technical Specifications of LG200 Freeze Dryer

Although specific values may vary between manufacturers,

the LG200 vacuum freeze-drying equipment typically follows similar technical ranges.

The following specifications table provides reference values for an LG200 freeze dryer.

**Table 1. Typical Technical Specifications of LG200 Vacuum Freeze-Drying Equipment**
Item	Typical Specification (LG200)	Description
Model	LG200 Vacuum Freeze Dryer	Medium‑capacity lyophilizer
Water Removal Capacity per Batch	Approx. 200 kg	Amount of ice that can be sublimated per cycle
Fresh Material Loading	Approx. 600–800 kg (depending on product)	Typical loading for food or bulk products
Usable Shelf Area	20–30 m²	Total product contact area of all shelves
Number of Shelves	8–12 layers	Varies according to shelf spacing and chamber height
Shelf Temperature Range	-50 °C to +70 °C	For product freezing and heating during drying
Temperature Uniformity	±1 to ±2 °C (on shelf)	Ensures consistent drying across batches
Condenser (Cold Trap) Temperature	-45 °C to -80 °C	Captures water vapor during sublimation
Condenser Capacity	≥ 250 kg per batch	Should exceed expected water load
Ultimate Vacuum	≤ 5 Pa (5×10⁻² mbar)	No‑load vacuum level in the chamber
Working Vacuum Range	10–200 Pa	Typical pressure range during drying cycles
Vacuum Pump Type	Rotary vane + Roots pump (optional)	Combined system for fast evacuation and deep vacuum
Refrigeration System	Mechanical refrigeration, cascade system	Configured to reach low temperatures for shelves and condenser
Defrost Method	Water or electric defrosting	Used to remove ice from condenser after each cycle
Chamber Design	Horizontal cylindrical or rectangular	Optimized for loading efficiency and cleaning
Chamber Material	Stainless steel (e.g., SUS304 or SUS316L)	Corrosion‑resistant and suitable for hygienic applications
Control System	PLC + HMI touchscreen	Recipe control, real‑time monitoring, and data logging
Power Supply	3‑phase, 380–460 V, 50/60 Hz	Exact voltage depends on regional standards
Installed Power	Approx. 60–120 kW	Varies by configuration (pump size, refrigeration stage, heating system)
Cooling Water Requirement	As per refrigeration and vacuum system design	Flow rate and pressure depend on local utilities
Compressed Air Requirement	0.4–0.7 MPa (if pneumatic valves used)	For valve actuation and CIP/SIP systems
Overall Dimensions	Customized, typically 6–10 m length	Dimensions vary by layout and ancillary systems
Weight	Several tons	Depends on chamber size, condenser volume, and frame design
Installation Environment	Indoor, well‑ventilated, controlled temperature	Space for maintenance and material handling required

These LG200 vacuum freeze-drying equipment specifications are representative and should

be adjusted to match the actual machine design and project requirements.

6. Structural Components of LG200 Vacuum Freeze-Drying Equipment

A typical LG200 vacuum freeze dryer consists of the following main components:

6.1 Drying Chamber and Shelves

Vacuum‑tight chamber with inspection window or viewport

Multiple temperature‑controlled shelves for product trays or vials

Shelf spacing designed to accommodate various container heights

Integrated shelf piping for circulation of heating/cooling medium

6.2 Condenser (Cold Trap)

Located inside or outside the main chamber

Large heat‑exchange surface for ice accumulation

Refrigeration system to maintain low condenser temperature

Defrost system to melt and remove accumulated ice after each cycle

6.3 Vacuum System

Vacuum pumps (main pump and booster pump as required)

Vacuum valves and piping network

Vacuum gauges (Pirani, capacitance manometer, etc.)

Vacuum safety devices and back‑up systems

6.4 Refrigeration and Heating System

Compressors, condensers, evaporators, expansion valves

Cascade refrigeration loops for ultra‑low temperatures

Circulation pumps and heat transfer fluids

Electric heaters or thermal fluid heaters for shelf heating

6.5 Control and Monitoring System

PLC (programmable logic controller)

HMI (human‑machine interface) touchscreen

Temperature, pressure, and level sensors

Data recording and storage (batch reports, trends, alarms)

Optional remote monitoring and network integration

6.6 Optional CIP/SIP and Aseptic Features

Spray balls or rotating nozzles for clean‑in‑place (CIP)

Steam distribution lines for steam‑in‑place (SIP)

Sterile air filters and aseptic loading/unloading interfaces

Pharmaceutical‑grade surface finish and hygienic design

7. Operating Parameters and Typical Process Conditions

Proper selection of operating parameters is essential for efficient and safe use of

LG200 vacuum freeze-drying equipment. The following table shows example ranges

that are commonly used for many products.

**Table 2. Typical Operating Parameters for LG200 Freeze Dryer**
Parameter	Typical Range	Notes
Freezing Shelf Temperature	-30 °C to -50 °C	Depends on product eutectic point or collapse temperature
Product Freezing Time	2–8 hours	Influenced by product thickness and loading capacity
Primary Drying Shelf Temperature	-25 °C to +5 °C	Adjusted to maintain product temperature below collapse point
Primary Drying Chamber Pressure	20–200 Pa	Balancing sublimation rate and product structure
Primary Drying Time	8–30 hours	Longer for thicker or high‑moisture materials
Secondary Drying Shelf Temperature	+20 °C to +60 °C	Higher temperature promotes desorption of bound water
Secondary Drying Chamber Pressure	10–100 Pa	Maintains efficient mass transfer
Secondary Drying Time	2–12 hours	Adjusted to reach target residual moisture
Final Product Moisture Content	≤ 1–5 % (w/w)	Depends on product type and storage requirements
Total Cycle Time	12–48 hours	Highly product‑specific

Users of LG200 vacuum freeze-drying equipment should perform trial runs

to optimize these parameters for each formulation or material.

8. Performance Indicators of LG200 Vacuum Freeze-Drying Equipment

When evaluating an LG200 freeze dryer, several performance indicators should be considered:

Drying efficiency: time required to reach desired moisture content

Energy consumption: power usage per kg of water removed

Temperature uniformity: variation between shelves and positions

Vacuum stability: ability to maintain set pressure during cycles

Condenser performance: ice holding capacity and defrost speed

Repeatability: consistency of results between batches

These indicators directly affect product quality, operating cost, and throughput

of the LG200 vacuum freeze-drying equipment.

9. Advantages of Using LG200 Vacuum Freeze Dryer Compared with Other Drying Methods

Compared with hot‑air drying, spray drying, or vacuum oven drying,

LG200 vacuum freeze-drying equipment offers the following advantages:

9.1 Product Quality

Minimized thermal degradation of active components

Better retention of biological activity (enzymes, proteins, microorganisms)

Preserved color, flavor, and aroma in food products

Improved rehydration speed and completeness

9.2 Stability and Shelf Life

Very low residual moisture inhibits microbial growth

Enhanced chemical stability of sensitive drugs and nutrients

Extended shelf life at ambient temperature under proper packaging

9.3 Process Control

Accurate control of temperature and pressure

Programmable cycles tailored to each formulation

Reduced batch‑to‑batch variation

9.4 Economic and Operational Considerations

Higher value of finished products justifies investment

Reduced transportation and storage costs due to lower weight

Ability to process high‑value, low‑volume materials efficiently

10. How to Choose the Right LG200 Vacuum Freeze-Drying Configuration

Selecting a suitable LG200 freeze dryer configuration for a specific application

involves evaluation of technical and operational requirements.

10.1 Key Selection Factors

Product type (pharmaceutical, food, biological, chemical)

Batch size and required throughput

Moisture content of raw material and target final moisture

Required shelf area and loading arrangement

Regulatory requirements (e.g., GMP, FDA, food safety standards)

Utilities availability (power, water, steam, compressed air)

Automation level and data integrity needs

10.2 Comparison of Typical LG200 System Options

**Table 3. Example Configuration Options for LG200 Vacuum Freeze-Drying Equipment**
Option	Basic Configuration	Advanced Configuration	Typical Application
Chamber Design	Horizontal chamber, manual loading	Automatic loading/unloading system	Pharmaceutical mass production requires automation
Control System	Standard PLC + HMI	21 CFR Part 11 compliant, audit trail, remote access	Regulated pharmaceutical and biotech sectors
CIP/SIP	Manual cleaning	Integrated CIP/SIP with sterile design	Aseptic production and injectable products
Vacuum System	Single rotary vane pump	Rotary vane + Roots booster, vacuum condenser protection	Fast cycling requirements and low operating pressure
Refrigeration	Single‑stage refrigeration	Cascade refrigeration for ultra‑low temperatures	Very low product and condenser temperatures
Data Recording	Basic trend recording	Comprehensive batch reporting and integration with MES	Production environments needing full traceability

Choosing the correct LG200 vacuum freeze-drying equipment setup ensures optimal

performance, regulatory compliance, and cost‑effective operation.

11. Installation, Operation, and Maintenance Considerations

Proper installation and maintenance of LG200 vacuum freeze-drying equipment

are essential for long‑term, reliable operation.

11.1 Installation Requirements

Sufficient floor space for equipment, utilities, and maintenance access

Structural support for heavy equipment weight

Suitable room temperature and humidity control

Correct electrical power supply and protective devices

Dedicated water and drainage connections for refrigeration and CIP

11.2 Operating Guidelines

Follow pre‑defined freeze‑drying recipes and process validation

Ensure proper loading pattern to maintain uniform air and heat distribution

Monitor vacuum, temperature, and system alarms in real time

Use appropriate packaging and sealing methods after drying

11.3 Maintenance Practices

Regular inspection of vacuum seals, valves, and gaskets

Periodic oil changes and service for vacuum pumps

Checking refrigeration system refrigerant levels and compressor health

Calibration of temperature and pressure sensors

Scheduled cleaning of condenser and chamber interior

12. Safety and Regulatory Aspects

LG200 vacuum freeze-drying equipment must comply with relevant safety

and regulatory standards applicable to the user’s industry and region.

Electrical safety and grounding according to local codes

Pressure vessel design and inspection requirements

Hygiene standards for food and pharmaceutical production

Environmental regulations for refrigerants and waste handling

Data integrity and documentation for regulated industries

Implementation of safety interlocks, emergency stop devices, and

clear operating procedures helps minimize risk during operation

of the LG200 vacuum freeze-drying equipment.

13. Summary and Application Outlook

LG200 vacuum freeze-drying equipment plays a critical role in modern

pharmaceutical, food, and biotechnology industries. With its medium capacity,

precise control of temperature and vacuum, and strong adaptability

to various product types, an LG200 freeze dryer is an ideal choice for:

Pilot‑scale development and process optimization

Small‑batch commercial production of high‑value products

Technology transfer from laboratory freeze dryers to larger industrial systems

Flexible multiproduct operation under controlled, reproducible conditions

When configured and operated correctly, LG200 vacuum freeze-drying equipment

delivers high‑quality freeze‑dried products with excellent stability,

appearance, and functional performance.

новости
